CURVED RAIL STAIRLIFT (Acorn Stairlifts)
|
|||
 |
Acorn Stairlifts 2010 |
||
- Description
- Features
- Request a Quote
- Send to a Friend

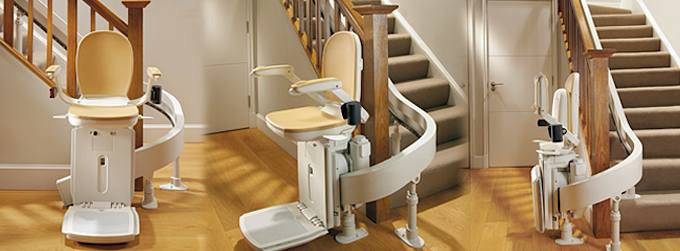

The Acorn 80 stairlift for curved staircases provides the ultimate in versatility. As the most innovative curved stairlift in the world, the Acorn 80 is able to tackle practically any staircase. And it's as comfortable and reliable as the Acorn Superglide stairlift for straight staircases.
Comfort & Safety
The Acorn 80 stairlift for curved stairways comes with all the Comfort and safety features that you can find on our Acorn Superglide stairlift.
The unique self-leveling transport system moves the stairlift carriage along the low profile rail and automatically adjusts the speed and level of the seat when moving round corners, providing an exceptionally comfortable ride. The stairlifts electronic programming ensures optimum performance at all times.
With a built-in soft start and stop facility, the Acorn 80 stairlift gives you a smooth and comfortable ride every time. You can be sure that your stairlift is always ready for use, even in the event of a mains power failure, thanks to the integral rechargeable battery pack.
When not in use, the Acorn 80 can be folded away; its slim profile and unique inside parking ability ensures that the staircase is not obstructed, allowing other members of the household to use the stairs as normal.
A Practical Solution
The Acorn 80 can be fitted on practically any curved stairway, and its slim, attractive rail attaches directly to your stairs (not the wall), so there's no damage to your home.
The stairlift is constructed from a modular rail, allowing the rail portion of the lift to be quickly assembled from standard sections, enabling faster delivery and an installation time to suit you.
Options
If there is a doorway near the foot of the stairs the optional automatic powered hinged rail is ideal. The lower section of the rail folds up and out of the way automatically as the stairlift travels up and down the staircase, allowing greater access at the foot of the stairs. This raises and lowers automatically as the stairlift travels up and down the staircase. When the stairlift is not is use, the rail is neatly out of the way and causes no obstruction.
The Acorn Stairlift is specified to meet, or exceed the requirements of:
* BS 5776:1996 - British Standard - 'Specification for powered stairlifts'
* CE Mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
* UL compliant (Underwriters Laboratory Inc) for mechanical and electrical hazards
Comfort & Safety
The Acorn 80 stairlift for curved stairways comes with all the Comfort and safety features that you can find on our Acorn Superglide stairlift.
The unique self-leveling transport system moves the stairlift carriage along the low profile rail and automatically adjusts the speed and level of the seat when moving round corners, providing an exceptionally comfortable ride. The stairlifts electronic programming ensures optimum performance at all times.
With a built-in soft start and stop facility, the Acorn 80 stairlift gives you a smooth and comfortable ride every time. You can be sure that your stairlift is always ready for use, even in the event of a mains power failure, thanks to the integral rechargeable battery pack.
When not in use, the Acorn 80 can be folded away; its slim profile and unique inside parking ability ensures that the staircase is not obstructed, allowing other members of the household to use the stairs as normal.
A Practical Solution
The Acorn 80 can be fitted on practically any curved stairway, and its slim, attractive rail attaches directly to your stairs (not the wall), so there's no damage to your home.
The stairlift is constructed from a modular rail, allowing the rail portion of the lift to be quickly assembled from standard sections, enabling faster delivery and an installation time to suit you.
Options
If there is a doorway near the foot of the stairs the optional automatic powered hinged rail is ideal. The lower section of the rail folds up and out of the way automatically as the stairlift travels up and down the staircase, allowing greater access at the foot of the stairs. This raises and lowers automatically as the stairlift travels up and down the staircase. When the stairlift is not is use, the rail is neatly out of the way and causes no obstruction.
The Acorn Stairlift is specified to meet, or exceed the requirements of:
* BS 5776:1996 - British Standard - 'Specification for powered stairlifts'
* CE Mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
* UL compliant (Underwriters Laboratory Inc) for mechanical and electrical hazards
- Safety cut-out sensors
- Remote controls
- Secure safety belt
- Modular rail for quick installation
- Near silent operation
- Fold-up seat & footrest
- Smooth start/stop action
- Easy to use controls
- Padded seat and backrest
- Swivel seat
- Diagnostic digital display
Safety Features
- Swivel seat with locking catch: To allow easier mounting and dismounting of a stairlift, an Acorn stairlift comes with a swivel seat. The swivel seat locks in position via a catch located on the seat which enables you can use the stairlift with ease. The stairlift will not operate unless the seat is in the correct riding position, this means that you can be confident that your journey on the stairs will be safe and secure.
- Seat belts: All Acorn stairlifts come with an inertial reel lap harness, this is like a seat belt in a car, and will keep you in the stairlift's seat at all times. Safety is a priority when going up the stairs.
- Pressure sensitive safety surfaces: If there is an obstruction on the stairs, our stairlifts will detect it with at least one of the five pressure sensitive surfaces situated around the stairlift. If an obstruction is detected, the Acorn stairlift will cease movement so you can move the obstruction. The pressure sensitive surfaces are located around the footrest and the top and bottom of the stairlift carriage.
- Slim-line design: The fold-away construction makes the stairlift unobtrusive and allows full access of the stairs.
- Diagnostic digital display: Mounted on the carriage of the stairlift is a digital display which shows clearly when the lift is in the normal operating position. Also it provides invaluable diagnostic information in the unlikely event of a fault with your stairlift.
- Limit sensors: At the end of either an ascent or descent, the stairlift will come to a 'soft stop' due to the limit sensors. These ensure that the stairlift always stops in the correct position.
- Electronic and mechanical braking systems: The stairlift is fitted with these essential safety systems to eliminate any possibility of an uncontrolled descent of the stairlift.
- Choice of Control: An Acorn stairlift can be controlled via 2 methods, a simple 'paddle switch' and the infra-red remote control. If both remotes are used at the same time, the paddle switches will override the remote controls, that means that the person on the stairlift will be in control of the stairlift.
- You will receive two infra-red remotes with every stairlift which enables you to call the stairlift to either end of the stairs. The infra-red remote is wireless so there are no messy cables trailing around your home, or unsightly wall mounted control stations.
- The 'paddle switch' control is located at the end of both arm rests of the stairlift and can be operated by hand.
Options
- Key Locking System: All Acorn stairlifts can be locked, preventing unauthorized use, with a key.
- Hinged Rail: The lower section of the rail folds up and out of the way when not in use, allowing greater access at the foot of the stairs. The option of a hinged rail is ideal when there may a doorway near the foot of the stairs. When the stairlift is not is use, the rail is neatly out of the way and causes no obstruction.
- Sit and Stand Frame: With a Sit/Stand Frame, you can choose whether to use the stairs in either the usual seated position or to stand on the footrest. With a special folding steady/security bar for stability, it is ideal for anybody who may have problems bending their knees, or where multiple users with different requirements will be using the stairlift. The Superglide Perch Stairlift may also be suitable.
Specifications
- Maximum Capacity: 300 lbs (350 lbs available)
- Power Supply: 24 v DC (battery)
- Mains Supply: 110v, 50Hz charger
- Track: Extruded aluminum
- Motor Output Speed: 22 rpm
- Motor Power: 0.25 kW
- Motor Output Torque: 108 Nm
- Method Of Drive: Rack & pinion
Dimensions
- Width of footrest: 12 in. (305 mm)
- Overall width: 22 in. (560 mm)
- Depth of seat: 16 in. (410 mm)
- Overall depth (when folded): 13 in. (325 mm)
- Overall height (from floor): 40 in. (1020 mm)
- Height of seat: 19.5 in. (495 mm)
- Overall depth (from wall): 23 in. (585 mm)
